Schedules, triggers & conditions

BeyondCron has three methods for initiating the execution of jobs, which can be used separately, or in combination.

Schedules

Schedules are time based events, such as cron expressions, or something more complex such as sunrise in Tokyo.

Schedules

Job J is executed whenever schedule S’ triggers within job calendar Jc.

Schedules

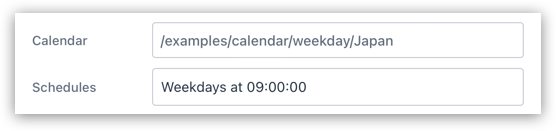

Execute at 09:00 weekdays, except for Japanese holidays.

Triggers

Triggers are external events, such as the success or failure of another job, and can be used to assemble a job flow.

Triggers

Job J is executed whenever jobs T’ or T" fail.

Triggers

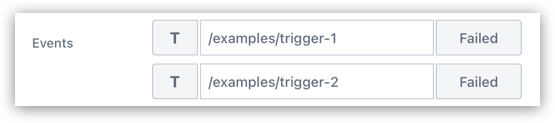

Execute whenever jobs /examples/trigger-[12] fail.

Conditions

Conditions are an extension upon triggers. The key difference being that in order for a job to be initiated, all conditions for a job must be met.

Conditions

Job J is executed whenever job C’ or C" completes successfully, and the other jobs state is also success, and both were executed after the last execution of J.

Conditions

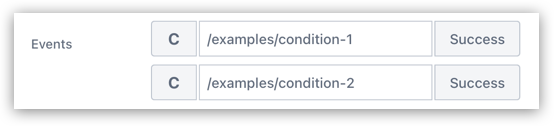

Execute whenever both /examples/condition-[12] jobs complete successfully.

Combination

When a job has a schedule, and one or more conditions, the job will only execute on the jobs schedule, providing that any conditions are also met.

Schedules, triggers and conditions

Job J is executed whenever schedule S’ triggers within job calendar Jc, and the state of job C’ is success, and was executed after the last execution of J.

Schedules, triggers and conditions

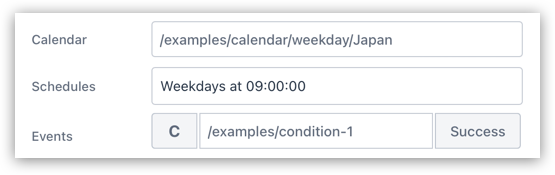

Execute 09:00 Japanese weekdays when job /examples/condition-1 is success.
